2. Related works

To alter the authentication of network Al-Shareeda et al. and Ozguner et al. [17] has introduced a context-aware authentication scheme. It helps to checks the context of the vehicle in specific period. It mainly focuses on the Public Key Infrastructure (PKI) and Group Signature (GS) to determine low communication authentication. When compared with the other communication scheme, the proposed scheme is much more effective and faster and increases the performance of the authentication throughout the lifetime of the network.

Vehicular Ad Hoc Network (VANETs) uses the Public Key Infrastructure (PKI) to authenticate the integrity of traffic message. But one main issue in VANETs is the efficiency. To overcome this issue Ali et al. and Li et al. [18] has introduced an efficient scheme named as Identity based Conditional Privacy Preserving Authentication (ID-CPPA) which is based on the Vehicle-To-Infrastructure (V2I). This scheme will allow the Road-Side Unit (RSU) to authenticate the services and it helps to increase the efficiency of the network. When compared with computational schemes, the proposed scheme is more efficient and adaptive for the network.

In this world of automation, wireless network and VANETs are widely used in application. This leads to some sort of privacy issues of the users. To protect privacy issues Feng et al. and Wang et al. [19] has proposed a new method named as Privacy Assessment method with Uncertainty consideration (PAU). It helps to eliminate the attacks in nodes. The real time data from V2V and historical data from cloud are used to evaluate the nodes in PAU. While experimenting PAU in mix-zone, privacy preserving is achieved and improved.

One of the fundamental factors of intelligent transportation system is the Vehicular Ad Hoc Network (VANET). But the main challenges in VANET are the security and privacy issues. To overcome this issue in VANET, Zhong et al. [20] has proposed a new method named as privacy-preserving authentication scheme by using full aggregation. Trace authority approach is used to track the identity of the users during the communication service. The cost of privacy is reducing with the help of the Road Side Unit by pre-calculating the data of the service.

Vehicular Ad Hoc Network (VANETs) is the one which is used in wireless sensor network. It helps to service efficiently and conveniently in transportation. But one of the problems in VANETs is the security and privacy issues. To overcome the privacy issues in VANETs, a protocol named privacy-preserving anonymous authentication was proposed by Zhang et al. [21]. It helps the user to send message and get information from the Road Side Unit (RSU) in a convenient and efficient way by without any further delay. A key exchange function is used to produce the session key to secure communication between the vehicles and RSC. The result in the experiments has increased the feasibility of the protocol.

In transportation, Internet of Things (IoT) is used to provide the interaction between the user and the network. In this Internet of Vehicles (IoV) is one of the main factors which is used for the interaction, because it is fast and reliable when compare with the others. Although it is reliable, privacy issue is a main problem in IoV. Jinila et al. [22] has proposed privacy preserved and secured architecture (PPSA) to protect the privacy issues. When compared with other approach, PPSA has increased in the performance and privacy of the users are protected.

Vehicular Ad Hoc Network (VANET) is a wireless network which is used to provide better services and performance in traffic environment for the users. The main challenge in VANET is the security and performance of the network. Jiang et al. [23] has proposed SAES, named a Self-checking authentication scheme with higher efficiency and security for VANET. To reduce the authentication of vehicles Group Signature is used. Trusted Authority (TA) is used to reduce the cost of authentication. The results of experiments show the efficiency of the scheme and also increased the performance of the network when compare with the existing schemes.

Vehicular Crowdsensing is one of the methods which is used to gather the information about the traffic event in wireless sensor network. To ensure the privacy and trust of the users, Xu et al. [24] has invented a new framework TPSense, for the trustworthiness evaluation and privacy preserving method. By using the maximization algorithm, convert the data to evaluate the user's problem. This framework is used to trace both the real and systemic problems. Results shows that the TPSense is more trust worthiness and reliable for the vehicles.

To provide efficient and feasible services for the user Vehicular Ad Hoc Network (VANETs) are widely used in transportation application by using the wireless sensor network. But at the same time the leakage in privacy issues is also a main problem in VANETs. Cai et al. [25] has proposed a scheme which is based on ring signcryption named conditional privacy protection for VANETs. This scheme is used to analyze the privacy problem in the network. Results have shown that the scheme is more efficient and secured when compared with the existing methods.

Privacy preserving is main concern in Internet of Things related application. Here Sfar et al. [26] has proposed a game theory-based privacy preserving model for transportation. The game theory model acts as conductor between the receiver and the sender in network. First it describes the elements of the theory and find a convenient way to secure the privacy of the users. The result of the experiment shows the efficiency of the proposed model.

The problems like security and privacy issues in Vehicular Ad Hoc Network (VANETs) have to be addressed before the deployment of the process. Alshudukhi et al. [27] has proposed a lightweight authentication with conditional privacy-preserving scheme by using elliptic curve cryptography to secure the commination in VANETs. Road Side Unit (RSU) and Tamper-proof device (TPD) are combined by the scheme to tract the security issues. The public patterns and the keys of the network are loaded in both RSU and TPD to avoid further issues. The proposed scheme is cost efficient when compared with the existing schemes.

Wireless transportation system widely uses the integrated service system named Internet of connected Vehicles (IOV) to collect information before the process of the service. IOV mainly focus on the security of the intelligent terminals in the network. Wei et al. [28] has discovered a protocol named multi-model implicit authentication which is based on intelligent terminal for IOV. To authenticate the vehicle, it uses the password of the vehicles as a key factor. By this the security of the user will be protect by the attackers. This framework is experimented with the existing schemes and the results shows better protection in the security of the users.

Al-Shareeda et al. [29] has proposed a method based on elliptic curve cryptography (ECC) named privacy-preserving communication scheme based on VANET. This scheme is used to analyze the security and privacy issues in VANETs. ECC and identity-based encryption scheme is used to address the problems in the network. Compared with the existing methods, the proposed model is much more secured and increases the performance of the whole network.

Chen et al. [30] presented a new approach to securing IoT communications using deep packet inspection (DPI) within network middleboxes. It uses privacy-protecting methods, lightweight cryptographic operations, and a dispute-resolution framework. The study includes both formal proof of security and experimental validation in the actual world. The process safeguards the privacy and security of your data without compromising either. There will be no disruptions in communication thanks to the built-in form for handling disagreements. Scalability considerations for large IoT devices and intricate network topologies require more study.

IoT will collect the history of the service and maintain the operation of the service. This will lead to privacy issues in wireless sensor network. Privacy-preserving and continuous data collection scheme has been proposed by Kong et al. [31] for maintaining the data in Vehicular Fog-cloud. The main purpose for the proposed scheme is to maintain the data of the vehicles and observe the data regularly sequentially. When compared with the traditional schemes, the proposed method is more feasible and the security issues are reduced.

3. Proposed Scheme

The proposed scheme aims at maximizing vehicle’s service endurance by reducing the adversary impact in the mobile environment. The adversary considered in this scheme is the man-in-middle that interrupts the services between vehicles and service providers. In the service allocation process, vehicle’s state is retained if the allocated service sustains regardless of the adversary density. For an ease of understanding, the proposed scheme’s functions are illustrated in Figure 1.

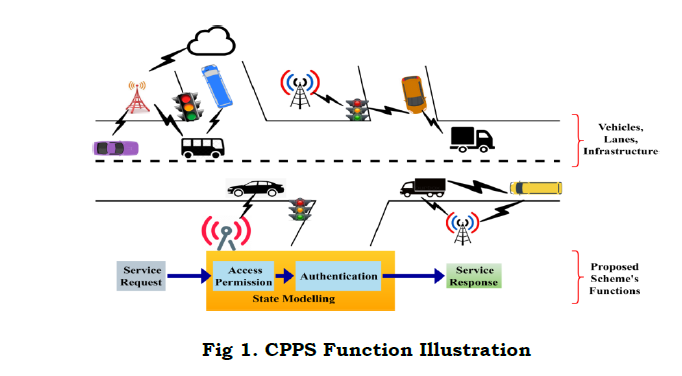

The vehicles are interconnected, through access points and other infrastructures units. Therefore V2V and V2X communications are familiar in the proposed scenario. The functions are classified as state modeling and service processes. In the state modeling, access permission and authentication are administered. The classifier learning process defines the states and functions. Contrarily, the request and response are performed in the other process. In the function validation, the man-in –the middle adversary model is considered. A schematic representation of the same is illustrated in Figure 2.

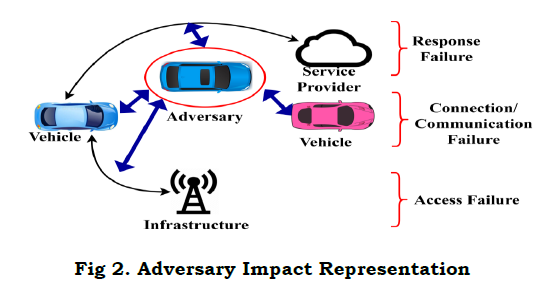

A man-in-the middle intruder causes response, communication, connectivity and access failures. It depends on the position and density of the adversary in an ITS scenario. The proposed scheme has to confront the aforementioned issues, without degrading the communication performance.

First, the permission grant and service access is defined for a vehicle using equation (1):

In equation (1), the variables V,R and t represent vehicles, requests, and time. For a response (ΔR), the available service providers (s) responds if both the infrastructure and S are available. The availability of infrastructure and service provider is defined as ρI and ρS. The grant process is defined as G and the permission P with respect to ΔR and failure (τ) is formulated in any instance is retained at a high level. This increases the service endurance, by reducing errors. The permission grants for G=1 and 0 is independently considered for defining as state. First, the state is defined as ∀ V and R, the G=1 and hence ρI.ρI=1. In the proposed scheme, three states are defined namely grant, deny, and pending. The grant state ensures service distribution to the V enduring its span. The deny state halts the service distribution due to privacy violation and adversary impact. Contrarily, the pending state defines the actual vehicle’s involvement in service sharing. This means it possesses the states of either grant of deny. If a grant occurs, it augments the service endurance; a deny increases service failures. Initially, the service level for a vehicle is defined as in equation (2)

. The service level Ŝ defines the flexibility provided to the vehicle V throughout i=1 to t such that G=1.If G=0, then τ>ρ di ∀i∈[1t] and hence the service failure is accounted. Based on Ŝ, the service grant state of a V is defined as {αG,αD,αp} where in the grant, deny and pending are represented. A common coalition between the states represented in Figure 3.

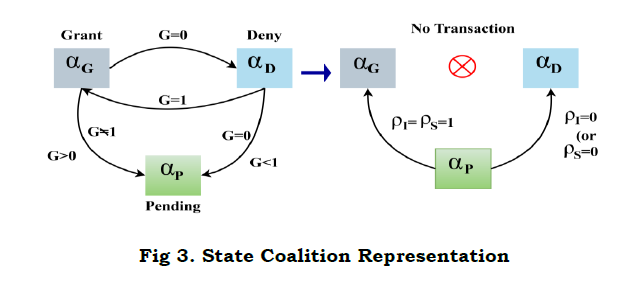

In the state coalition, grant to deny and vice versa transaction relies on G alone. Where as αp−αG and αP to αD transactions are decided based on ρI and ρS. Therefore the occurrence due to vehicle movement and handoffs in different ρI=1 requires the above intermediate transactions. The transaction between αp and αD, and αP and αG is defined using equation (3)

In equation (3), the variables Π andP−D ΠP−G denotes the transaction for the appropriate states. This is connected with Ŝ such that the service is sustained and hence the access failures and connected failures are reduced. The state models for transactions are used for providing different authentication formats. It depends on the state and action as defined in ρI=1 or ρS=1. Contrarily, if ρI=ρS=1, then the ΔR is high, reducing τ; the alternate case is the privacy preserving. If a transactionΠP−D is observed, then partial transaction authentication is required. Contrarily, if ΠP−G is observed, then a complete authentication sequence including V and S is required. The first preserves the V, disconnecting τ induced failures, whereas the later part requires V and S authentication preserving service endurance. The authentication for ΠP−D is discussed as follows. In this process, a conventional bilinear mapping-key based authentication is used. For a service grant process where ρS=ρI=1, the bilinear pairing between V and I is defined as (B×B):→[Aprim,Sprim]G=[Aprim]G . Here the Aprim and Sprim refers to the vehicle’s and service providers primitives for privacy. The primitives include a non-replicated key (k), a random generator α, and Ŝ. Therefore the Aprim and Sprim are defined as in equation (4)

The “provided” condition is the congruency in verifying the privacy between different V and I, and (I,S). If the congruency is retained, then the state is retained as ΠP−D alse ΠP−G is observed. This congruence-based privacy preserving between V and I and S is presented in Figure 4. This illustration is observed for t before privacy breach/ communication failure occurs.

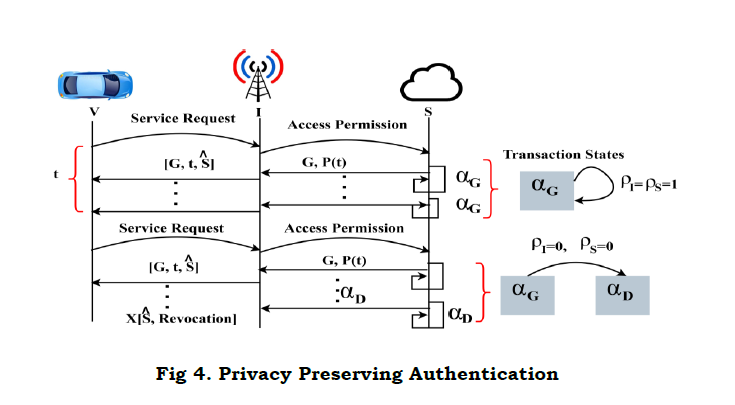

The above Figure presents the validation between different transactions states wherein ρI=ρS=1 or 0 is considered. There are two possibilities in providing authentication and privacy preserving (i.e.) ΠG−G (i.e.) αG is alone true and αG to αD is experienced. In the first case, a complete privacy is to be retained for V and services. As discussed earlier, in the second transaction, v′s privacy and authentication is alone expected. Therefore, by pursuing equation (4), the primitives are exploited in maximizing the communication rate. In leakes privacy experiences, the primitives (of V) are revoked, suspending it from the I connection. Thus the changes are reverted using the states and in a reconnection, the ΠP−D or ΠP−G is considered. Therefore the first authentication covering, V,I and S is given by equation (5).

In equation (6) the modifications are pursued between S,I, and hence the privacy is retained for Ŝ. This ensures intruder less access to the services under high communication rate. Therefore the privacy between V,I and I is high, and the service access is restored. Contrarily to state transaction is retained in αG such that ⨅G−G is used for verifying t. In the other authentication, partial privacy is ensured where in ⨅G−P is induced. The process illustrated in Figure 4 (i.e.) ρI=ρS=0 represents the failure in t and therefore an adversary impact is experienced. Therefore, the partial privacy requirements are retained based on the previous state. If the previous state is αn, then new validation and authentication is initiated. If the previous state is αp , then the probability is either αG or αD. Therefore, the partial privacy (for V alone) is retained. In this scenario, the privacy is preserved based on ΠG−G and from this if the V requires authentication, it performs Aprim and Sprim exchange. This is induced in t ∀ authentication, concealing the communication. This partial privacy is ensured in ΠP−D and ΠG−P transactions. The process is defined using equation (6) for both the transactions.

The above validation ensures the ρI=1 or 0 whereas ρS=1 or 0 need not be verified. This reduces the communication cost provided for V2V and V2I information exchange. The above is valid until ΠP−P or ΠD−D is not achieved in any t. Hence the communication rate is expected to be high in the above case. The contrary part requires a proper classification of revoked/ persisting V in the communication scenario. Here, V’s revocation does not require the above authentication, reducing the communication cost. It depends on αG to αD transactions for providing a denial from service access. First, the ρS is verified proceeded by ρI requirement and hence revocation with the last known Ŝ is achieved. The process verifies the current and previous state is expected to be in αG for new communication. The transaction under different ρI=0 or 1 and ρS=0 or 1 is defined as in equation (7)

The chance that leads to modification in different t is evaluated using equation (3) and (7). In equation (7), Ŝ is not accounted as the service level is unknown (unavailable) in αPstate. The process for different state transaction based on V to S communication is illustrated in Figure 5.

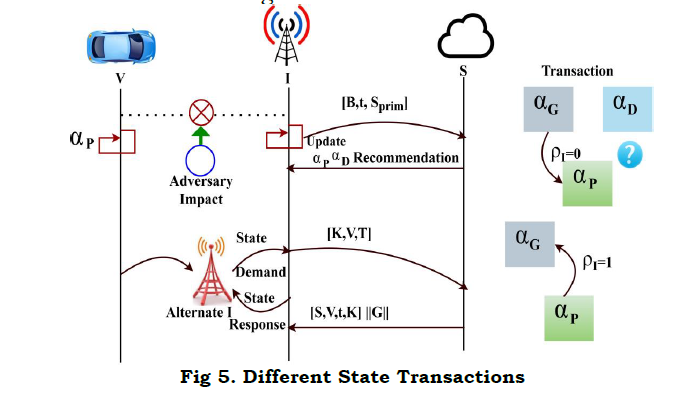

As in the above illustration, αP to αG is verified through a new I and here the previous state demand and response are required. The change in state is observed for any t with precise k for G=1. Therefore, the ρI=1 is retained within ⨅P−G transaction. Therefore vehicle revocation case is not required. Contrarily, the discrepancy due to B and τ by equating equations (3) and (7) induces a revocation. Therefore,

In the above equation, two different constraints are balanced (i.e.) G and (ρI,ρS). If both the constraints are satisfying, then same state is retained else a transaction is required. This transaction ensures revocation of the same across different intervals. Therefore τ≠0 whereas τ=0 to τ≠0 has to be verified in different t. Thus the V is suspended from the communication due to adversary impact. If the adversary impact is overcome, then the validation pursues a partial validation preventing the impact over V. Therefore the revocation denies S access for multiple t and it persists to be the same, preventing different verification and privacy patterns.

User Revocation: The revocation process distinguishes a change in service access and vehicle’s state transactions. In the revocation process the constraints in equation (8) is validated wherein equation (1) with ρI=1 or ρS=1 is modified. Hence in this case, the change is performed with an augmentation in multiplet.

However this occurs in different t and therefore, adversary impact is reduced. The v′s state is retained in the previous transaction, preventing privacy leakage. For a new vehicle request, the permission is denied in the same interval, a persisting vehicle is revoked of its permissions/ access from the current t. The revoked process is defined by equation (9)

The grant is defined in the above equation for R requests and if a V retains its state in αD, then R=0 and hence G=0. This means the V is revoked from ρI and ρS, deviating service access. On the other hand revoked users are analyzed for their liability and hence the authentication follows Aprim,Sprim. In equation (4) the partial authentication is induced for preserving v′s privacy regardless of ρI=1 or ρS=1. Pursued by this, the revoked user is allocated with a service until the condition (transaction) is equation (8) is achieved. This defines a new Ŝ for the user/ vehicles in the communicating scenario. In Table 1, the G for different “t” is presented.

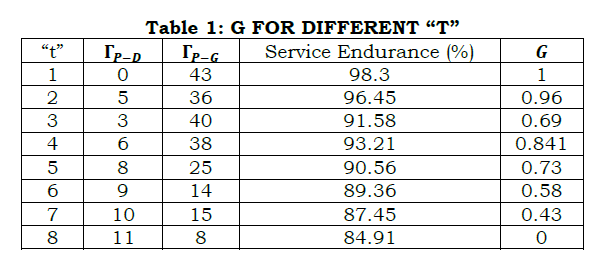

The G observed at an average for different “t” is presented in Table 1. This is based on ⨅P−D observed in different states available. The service endurance is maximized if ⨅P−G is high provided ρs.ρI=1 and the constraint in equation (8) is satisfied. Contrarily, the G requires ⨅P−D and Ŝ for providing flaw less disseminations. The above factors reduce the adversary impacts, containing multiple non-feasible factors in “t”. Table 2 presents the service endurance and communication cost for different vehicle density

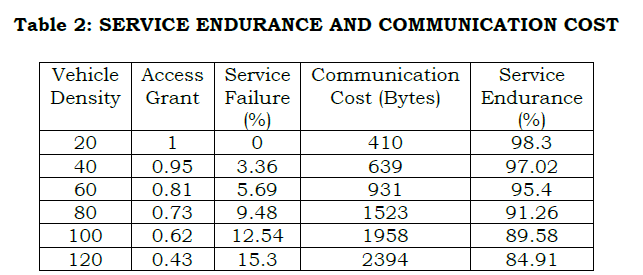

An analysis for service failure, communication cost, and service endurance is presented in Table 2. Based on the G factor defined in two equations, the endurance is retained. The communication cost increases if G is high and hence the service failure is less. These two factors under ⨅P−G and ρS.ρI=1 maximizes service endurance without increasing the communication cost. Figure 6 presents the analysis for service endurance and access failure for different probabilities.

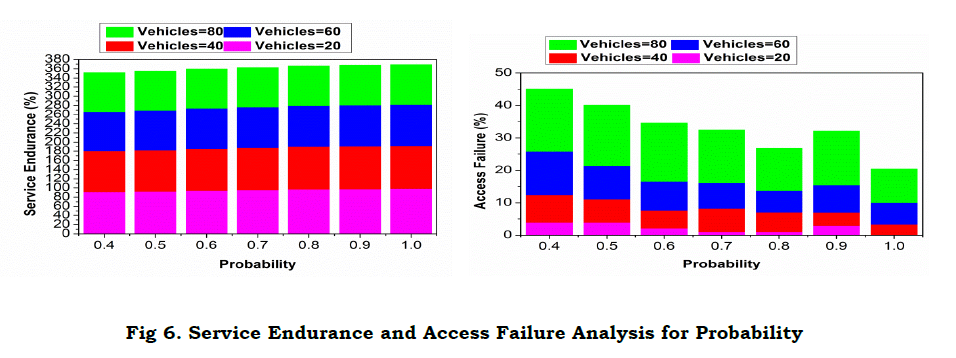

Figure 6 presents an analysis for service endurance and access failure for different probabilities. The probability considered is 𝜌𝐼.𝜌𝑆=1 wherein the individual; ratios may vary. As the endurance increases, access failure decreases confined to the 𝑆̂. In the maximizing probability the 𝑉 determines the available “t” and hence a process is defaced. Therefore, less is the vehicle density, high is the endurance and less is the failure. The independent and joint state definitions and ⨅𝑃−𝐺 determinations reduce the failure in resource access. The proposed scheme balances 𝑉,𝐺 for different privacy contained constraints maximizing the performance. In Figure 7, the revoked 𝑉, access and response time for different transactions and vehicles is presented.

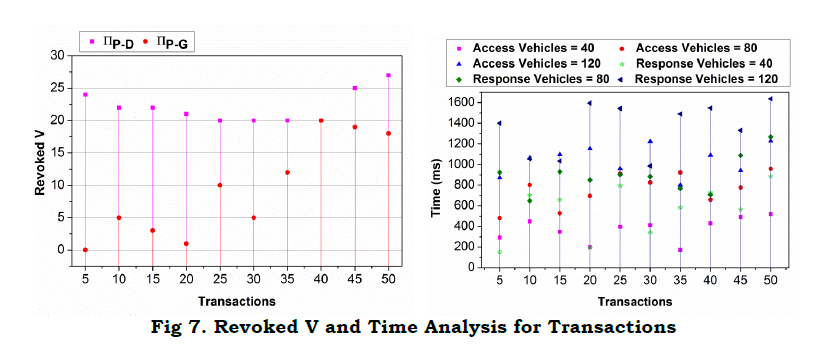

In Figure 7, the v′s revoked and time for different transactions are analyzed. The v’s revoked are analyzed under ⨅P−D and ⨅P−G transactions. In ⨅P−D the revocation is high as ⨅G−P id achieved first and hence the vehicle is not included in the communication. Contrarily, ⨅P−G reduces the revocation as both αD vehicles and new ones are augmented for the communication. This requires different access and response time, controlling the privacy and Ŝ. The changes are predominant in providing access to the Sand ρs.ρI=1 is retained. Therefore the access is mapped to the S based on their incoming time and hence the response. In different ⨅P−G ,⨅P−D × ⨅G−P , access and response is provided at precise intervals.

4. Performance Assessment

This section analyzes the proposed scheme’s performance using comparative analysis. The experiment is modeled using vehicular SIM considering 130 vehicles distributed in a highway with 3 intersections. A vehicle is allocated a maximum of 9 instances, for service sharing augmentation. Three vehicle states and 50 transactions are considered for identifying the performance for access time, adversary impact, response time, service endurance, and communication cost. The methods ID-CPPA [18], TPSense [24], and LAPPS [27] are accounted for the comparative analysis from the related works section.

a. Access Time

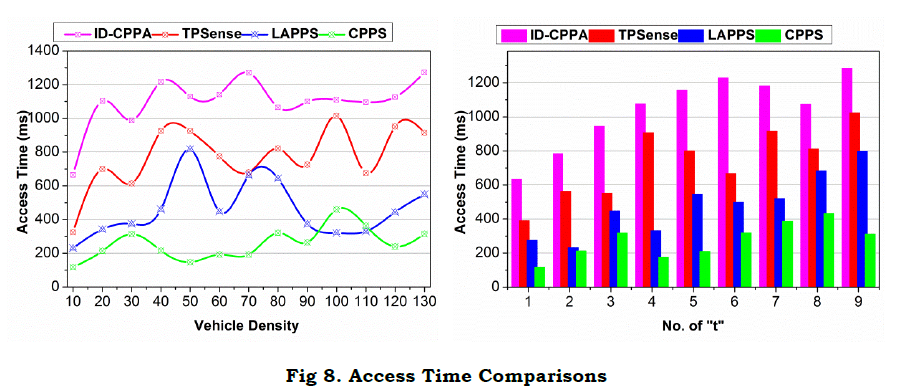

Figure 8 presents the comparative analysis for access time for different vehicle density and "t". The access time is comparatively less for different t and V by maximizing request process rate. In the proposed scheme, the v′s are integrated based on transactions defined by αD and αP. The pending state provides additional delay for the R in different t. First, if αp tends to αG, then G=1 is acquired and hence access time is less. Contrarily, if τ≠0 is observed, then the partial privacy preserving feature is instigated for maximizing access. The Ŝ is retained for the previous case whereas the Ŝ is defined from 1 for the second case. In G assessment based on ⨅P−G balancing as in equation (9) and (8), the ρS=0 or ρI=1 is first attained. If ρS=1 is achieved, then τtends to 0 and hence the revocation is denied. Therefore, access to service is provided instantaneously without reducing ΔR. Besides the state learning based allocations reduces the adversary impact and thereby frequent disconnections. This turns out in ⨅P−G and ⨅G−G independently. Therefore the v′s requests are momentarily analyzed without additional communication cost. The split in ρ[P(t)] and τ as in equation (8) defines the access level without intersection. Hence the proposed scheme incorporating above features, reduces the access time.

b. Adversary Impact

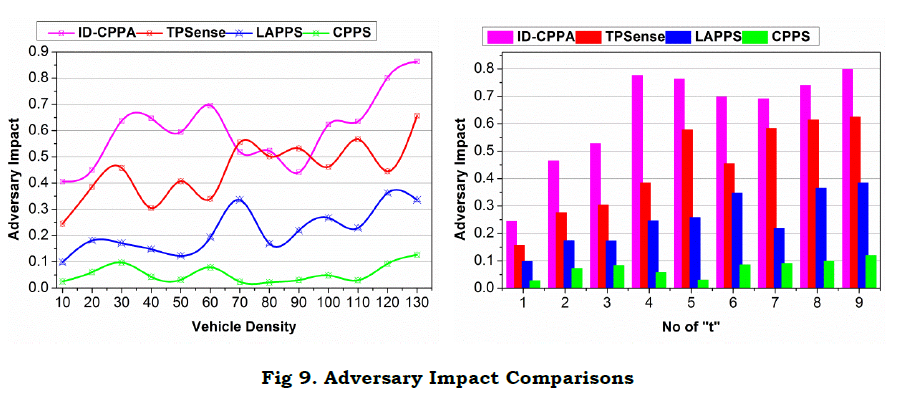

The proposed scheme achieves less adversary impact compared to the other methods. An illustration of the same is presented in Figure 9 for different v and "t". The considered impact of the man-in-middle adversary is combated using transactions and state modeling. First, the G for a V is designed as 1 such that ρI.ρS=1 is satisfied. There are two cases of adversaries considered (i.e.) the location of the adversary is to be considered. In ⨅P−D and ⊓P−G, the states are retained and new identity based privacy features are retained. Therefore regardless of the adversary density and location, the transaction defines its impact. For Ŝ defined in multiple instances of ⊓P−D and ⊓P−G, ρs=ρS=1 is verified. Based on this condition validation, (Ps⨁ 1B) ensures secure communication between the v′s. Therefore a "t" that breaks the closure in this instance reduces the adversary impact. In this context, the V is suspended from I and hence ρI=0. This means the least possible chance of v′s privacy is ensured. Further privacy post the transaction verification maximizes high security, reducing the adversary impact.

c. Response Time

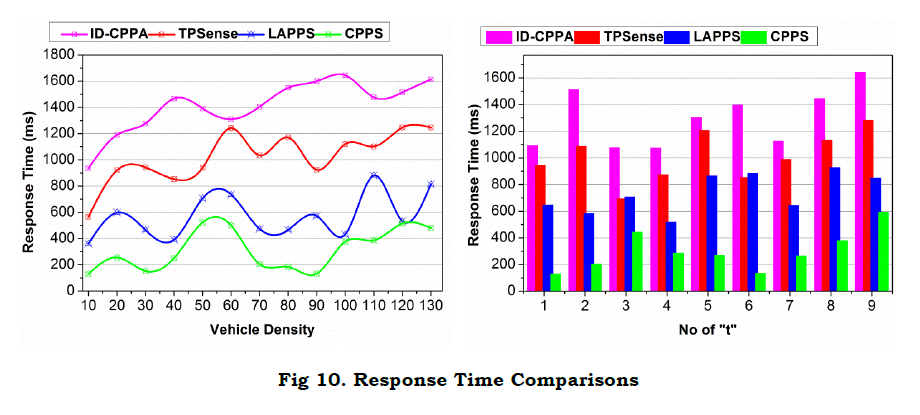

The proposed scheme achieves less response time compared to the other methods (Refer to Figure 10). The access is concurrent and swift for different V under contained privacy. In the permission delegation, ρI and ρS constraints are satisfied for maximizing ΔR. However if an adversary impact is observed, then the transaction determines the V state. Here, ΔRR is the reward factor that maximizes the communication rate without compromising time. In the privacy retaining case, the independent/ joint authentication for V and session “t” is administered. Therefore, G=1 and hence service response is high. For the R in “t”, the ΔR is congruent at some far “t” and therefore response time is less. On the other hand, an independent privacy retaining vehicle need not ensure a false communication. This is confirmed based on Ŝ and the final validation is performed based on (Aprim,Sprim). IT provides a durable communication security, preventing communication τ. Therefore, the passive communication support and interruption in V2V or V2X is less in the proposed scheme requiring less response time.

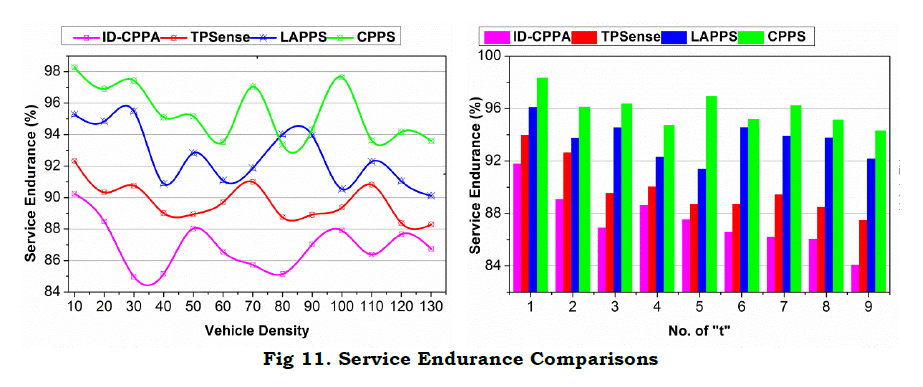

d. Service Enduranc

The proposed scheme retains the communication session without additional computation/ overhead. This is achieved by providing independent authentication and privacy stings between v’s and S. First, ρI based assessments provide [G,t,Ŝ] features in Aprim for security the “t. Pursued by this process, P(t) in Sprim retains the session endurance until ΔR is received. Therefore, the change in different verification phases for (t) and G−G as in equation (5). The validation is performed for Aprim in t and Sprim in (t+1) for P dt such that PI=0 or PS=0 is identified. If this is identified, then a new I is allocated for ΔR and therefore service is retained. Contrarily, if ΔR is not achievable, then the privacy of V is retained, preventing further R failures. Thus the ⨅P−D or ⨅P−G is decided for further communicating “t”. This improves the session’s endurance, reducing the adversary impact. Similarly, the state analysis in equation (8) determines the requirement or end of a “t”. The transaction requiring V is disconnected from the session and hence the communicating “t” is retained. This prevents false transmissions and paused “t” maximizing the endurance. A comparative analysis for service endurance is presented in Figure 11.

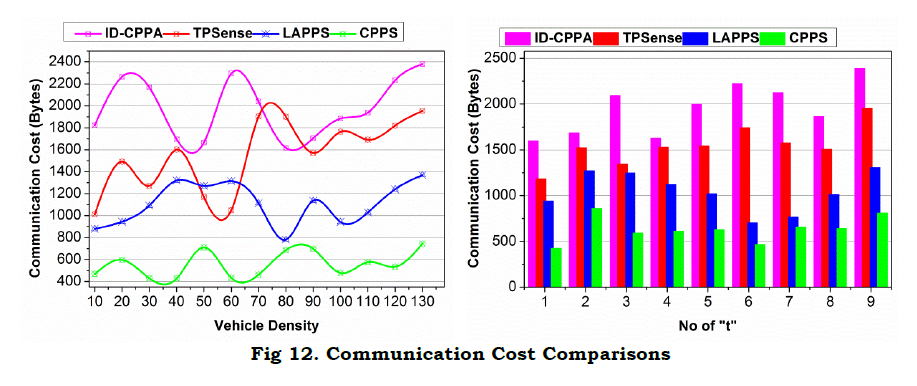

e. Communication Cost

The inclusion of adversaries in a “t” requires altering session and new I for communication. This requirement is reduced in the proposed scheme by performing two different assessments. First, the validation is preceded based on privacy maximizing ΔRR. The Ŝ is defined as high for service access and hence the dissemination are masked above the required α. This is verified until ρI−ρS=1 is satisfied. Contrarily Aprim ensures a reliable communication with ρI=0.

Therefore additional requirement for the “t” is not mandatory, pursuing the ⨅G−G . This ensures no additional control data between V′s and I′s. The second validation is the state identification defined through equation (7). The ΔRR maximization is required for ρI=0 or 1 without increasing the adversary impact. In equation (8) the transaction validation is performed for balancing multiple ΔR constraints, reducing false rate. The v is revoked from the communication provided τ≠0 and t
