DEVELOPING VISUAL QUESTIONS ANSWERING MODELS USING NATURAL LANGUAGE PROCESSING AND OPTIMIZED LEARNING MODEL

Authors :

Ali Fahim and Ahmed Rashid

Address :

Senior Researcher, Department of Information Systems, American University of Sharjah, UAE

Assistant Professor, Department of Computer Science, Khalifa University, UAE

Abstract :

As an aspect of AI, Visual Question Answering (VQA) integrates computer vision and natural language processing. It involves designing computer-based systems capable of automatically answering questions about images. Recently, VQA has received increasing attention owing to its potential to narrow the gap between image understanding and Natural Language Processing (NLP). However, the traditional models of VQA need better interpretations of meaning from complex visual data and hence formulate answers that are only sometimes contextually relevant; this seriously limits scalability and precision. This paper proposes a new approach called VQA-NLPFA, which seeks to overcome these limitations by developing an optimized VQA model that embeds NLP techniques into an advanced optimized learning model like the Firefly Algorithm. It can combine visual and textual information effectively, as the approach takes advantage of techniques related to multimodal data fusion. This model uses an attention mechanism using deep learning strategies that focus on the salient regions of the image, considering factors necessary for understanding the question. Hybrid algorithms optimize the learning model for better training speed and accuracy by reducing overfitting and enhancing feature selection. The preliminary experiments show that the proposed model of VQA-NLPFA outperforms traditional models with remarkably improved accuracies from difficult visual questions. The enhanced capability of understanding the context and generating accurate and more context-aware answers is accomplished. An optimized learning model further reduces the computational cost by a great amount, making the system much more scalable for real-world applications.

1.Introduction

It is an inherent task of any question-answering system and defines the ordered arrangement of inquiries. ‘A query can be answered if it can be stated at all’. In the previously stated basis, Wittgenstein established a connection between the act of questioning and the presence of a response [1]. Retrieving a natural language response to any given natural language question from a picture is the goal of visual questions and answering (VQA). Researchers have poured a lot of time and energy into this problem, and numerous cross-modal approaches have reached the cutting edge of performance [2]. To pass the Turing Test in spirit, the computer must demonstrate various human-like capabilities: visual recognition in the wild, language understanding, simple reasoning capability, and, importantly, background knowledge about the world. Since the problem of VQA was formulated, many of these aspects have been pursued [3]. A successful, robust, and unbiased VQA system is supposed to deduce the right answer from the right area of the image [4]. Figure 1 shows an example of the VQA.

The question-and-answer prompts can elicit multiple perspectives on the provided image and the intended topic and pertain to various instances in the image, such as items, sceneries, and actions. [5]. The most important factor when developing models for real-world applications is reliability, which can loosely be explained as the ability of the model to make as few mistakes as possible in cases where the model is uncertain [6]. To address these challenges, a model must first understand the topic, infer the relationships between pictures, and then utilize these relationships to establish relationships between items in different images [7]. Natural language processing (NLP) bridges the gap between computers and natural languages. This allows computers to have a grasp on and assess human language. [8]. This will likely also improve the relational representation between objects detected in an image or entities from a question and objects from an image by leveraging knowledge from outside, supportive facts. It also includes information about how the answer can be obtained from the question [9]. Attention mechanism-based approaches often combine question and picture representations according to the learnt significance of words and objects. Machine understanding of picture content and exterior previous data spanning common sense to comprehensive understanding is often required when VQA is implemented in real-life situations [10].

Most traditional VQA models suffer from these complex situations due to a lack of data fusion and interpretation of context. Visual and textual information alignment remains inappropriate, leading to mismatched responses and contextually irrelevant answers. The VQA-NLPIFA model, overcoming traditional models' deficiencies, integrates NLP techniques and optimization via the Firefly Algorithm. This improves the multimodal data fusion, leveraging NLP to extract deeper semantic meaning from questions and explain complex sentence structures while incorporating a deep learning-based attention mechanism that focuses on the salient regions of an image concerning a query. It also integrates the Firefly Algorithm to optimize performance, enhance feature selection, reduce overfitting, and increase training speed. This illustrates that VQA-NLPFA comes up with contextually relevant answers and, overall, can manipulate the visual data much better in offering superior performance on accuracy and training speed with enhanced generalization across different tasks of VQA.

The primary significance of this study is

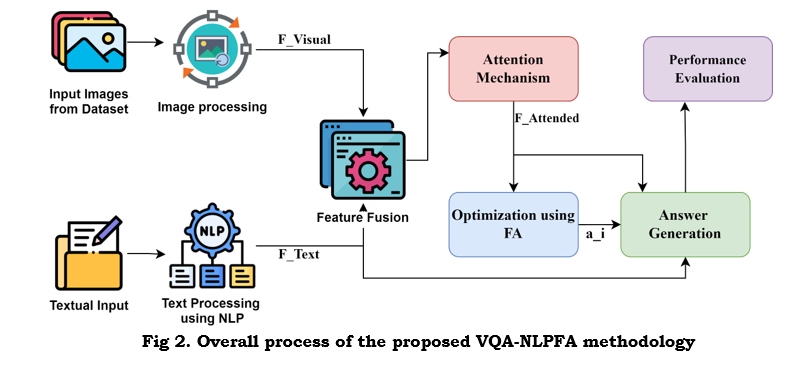

The proposed approach VQA-NLPFA is an improved version of VQA, representing a conglomeration of advanced techniques of NLP, deep learning-based attention mechanism, and optimization by Firefly Algorithm. This model focuses on key regions of an image relevant to the question and improves interpretation and accuracy in answering complex visual queries. It can optimize learning VQA by reducing overfitting and improving training speed. Its performance is superior to that of traditional VQA models. Therefore, VQA-NLPFA enhances the accuracy of context-sensitive answering and computational costs to make it more scalable for practical use.

2. Related work

Li P. et al. [11] proposed that the work includes new ideas for improving VQA via GANs, autoencoders, and attention mechanisms. Such methods mitigated the problems of generating accurate answers from complex visual and linguistic inputs. The result suggested that while GANs perform well, the autoencoder techniques outperform them slightly with better learning of optimal embeddings. Attention mechanisms also enhanced the understanding of language priors, making them effective in solving complex tasks in VQA.

Li, L. et al. [12] proposed some in-context configuration strategies that enhance the performance of VQA with LVLMs. Similar-image-and-question-based demonstration retrieval and manipulating in-context sequences are introduced for better learning. The results are remarkable, especially when similar images and questions are used, entailing efficiency in the explored strategies and capability optimization of LVLMs to execute VQA.

Qian, T. et al. [13] introduced a benchmark, NuScenes-QA, composed of 34,000 scenes with 460,000 question-answer pairs for VQA in autonomous driving by integrating multi-modal data like camera images and LiDAR point clouds. It handled real-time, multi-frame, and multi-modal visual data complexities in autonomous driving that traditional VQA datasets cannot address. Techniques included scene graphs, manually designed question templates, and more. It represents a comprehensive benchmark with diverse question types, hence showing gaps in the performance of existing models and motivating research within autonomous driving VQA.

Chen P. et al. [14] proposed the Rank VQA model, which relies on a hybrid strategy inspired by ranking to improve its performance in VQA. Rank VQA used trained BERT (Bidirectional Encoder Representations from Transformers) model semantic textual features and high-quality visual characteristics from a Faster Region-based Convolutional Neural Network (R-CNN) model. The experimental results show that on the average level datasets VQA, RankVQA significantly beats all current models. It achieves 71.5% accuracy with a Mean Reciprocal Rank (MRR) of 0.75 for VQA v2.0, while for COCO-QA, the model achieves 72.3% accuracy with an MRR of 0.76.

Wu, K. [15] used a gated attention-based visual question-answering methodology. The model is designed to include an RNN for answer prediction and a visual inference network to extract complex problem features. It addressed the low accuracy in complex questions by strengthening the inference capabilities to leverage semantic information from text and images to build cross-modal associations. The suggested model considerably surpasses the present state-of-the-art, according to experimental findings on complicated questions running on the VQA dataset.

Mohamed, S. S. N., & Srinivasan, K. [16] proposed a VQA system for the medical domain that leverages the Visual Geometry Group Network (VGGNet) and Long Short-Term Memory (LSTM) techniques to extract features and fusion in medical images to answer related questions. It is designed so that image and text features will be well-processed and concatenated, improving response accuracy. Thus, the model can provide an accuracy score of 0.282 and a BLEU score of 0.330, showing great promise in enhancing medical image interpretation and decision-making.

Kolling C. et al. [17] presented a comprehensive analysis of VQA models, focusing on the impact of different components such as question representation, visual feature extraction, and attention mechanisms. More precisely, it tries to identify what elements are crucial in providing maximum predictive performance. From a methodological point of view, this involves exhaustive experiments with over 130 neural network models with different strategies. It found that simple architectures can achieve competitive performance, while state-of-the-art performance requires attention mechanisms and pre-trained embeddings.

Lan, Y. et al. [18] propose a method to boost Zero-shot VQA precision by generating Reasoning Question Prompts that disambiguate ambiguous questions. The technique aims to bridge the semantic space between picture descriptions and inquiries by making LLMs' understanding of queries possible and, hence, giving relevant answers. The experimental results have proved that the proposed method significantly enhances VQA's performance, ensuring cutting-edge findings across many datasets by providing much better guidance to LLMs while reasoning.

3. Proposed Methodology

3.1 Natural Language Processing (NLP)

Natural Language Processing, NLP, is a subfield of computer science and AI that aids computers through the application of machine learning to achieve human language understanding and interpretation capabilities. With NLP, the interaction between computers and other digital devices and texts and speeches is possible using combined with statistical modelling, deep learning, machine learning, computational linguistics, or rule-based modelling of human language.

Natural language processing (NLP) harnesses the potential of deep learning and machine learning techniques with computational linguistics. There are two main kinds of analysis in computational linguistics—syntactical and semantical—that use data science to examine language and speech. Syntactical analysis applies preprogrammed grammar rules to the syntax of words to establish their meanings in phrases, sentences, and other written forms. Word meanings are inferred from syntactic analysis output through sentence structure interpretation in semantic analysis.

Some of the linguistic tasks are

Coreference resolution is finding instances where two terms mean the same thing. One of the simplest cases is finding out who or what a particular pronoun refers to; for example, "she" = "Mary." In other cases, though, it may decipher idioms and metaphors within the text, such as when the "bear" is a big, hairy human being rather than an animal.

Named entity recognition (NER) finds useful words and phrases. NER identifies “London” and “Maria” as places and names, respectively.

Part-of-speech tagging is grammatical tagging, which determines the correct language component for a writing element according to its context and usage. Part of speech would classify "make" as both an adjective and a verb in the sentences "I can make a paper plane" and "What make of car do you own?"

Defining senses of words is the act of assigning a single meaning to a term that can have multiple meanings. A semantic analysis method is employed, which considers the word's context. For example, disambiguation of words differentiates between the meanings of the verb "make" in "make the grade" and "make a bet." Teasing out "I will be merry when I marry Mary" involves quite a high degree of complexity within the NLP system.

4. Results and discussion

a. Dataset Explanation

The goal of visual quality assessment (VQA), a multimodal task, is to appropriately provide a natural language response as output given a picture and a question about the image. The process entails deciphering the image's meaning and connecting it to the query. Many sub-problems in CV and NLP (tasks like counting, item recognition, scene classification, etc.) are involved in VQA due to the requirement of contrasting the significance of data offered by the visual and the related verbal inquiry. As a result, it is deemed an AI-complete task.

b. Performance Metrics

This section compares traditional models such as GANs [11], Rank VQA [14], and Gated Attention with RNN [15] with the proposed VQA-NLPFA method. While conventional approaches leverage GANs, recurrent neural networks (RNNs), and attention mechanisms to generate answers from visual inputs, VQA-NLPFA enhances visual question answering by integrating multimodal data fusion, employing a deep learning-based attention mechanism and optimizing feature selection with the Firefly Algorithm. Performance metrics such as accuracy, training speed, Mean Reciprocal Rank, and computational cost comprehensively compare VQA-NLPFA with traditional models, evaluating model precision, efficiency, and scalability improvements.

i) Accuracy

Accuracy is a metric that evaluates the model VQA-NLPFA system's correctness in answering questions upon visual inputs. In terms of classification or prediction, it will provide the ratio of correct predictions or, in other words, answers done by the model concerning the total number of predictions. It can be calculated as in equation 11.

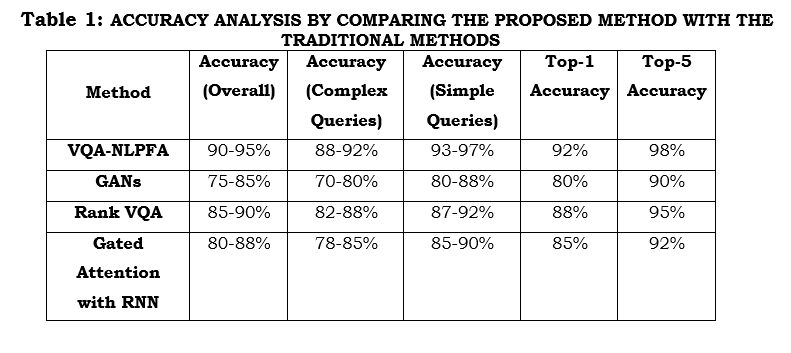

Table 1 provides an analysis of accuracy by comparing the proposed VQA-NLPFA model with traditional methods like GANs, Rank VQA, and Gated Attention with RNN across five key metrics: Overall Accuracy, Accuracy for Complex Queries, Accuracy for Simple Queries, Top-1 Accuracy, and Top-5 Accuracy. VQA-NLPFA reaching an overall accuracy of 95%. Since the complex queries involve the identification of attributes of objects in an image, the VQA-NLPFA scores 92%. This outperforms the best performance achieved by GANs, 70-80%, and Gated Attention with RNN at 85% since FA-enabled algorithms focus on the key regions in an image. In simple queries, this reaches up to 97%, outperforming GAN-based techniques which perform best at 80-88%, and Rank VQA at 92%. VQA-NLPFA reached a high Top-1 accuracy at 92%, and at an almost perfect score in Top-5 accuracy for different kinds of question types, its superior performance is nicely demonstrated at 98%.

ii) Training Speed

The rate at which a VQA model can absorb and apply new knowledge from training data is called its training speed. The common units of measurement are examples per second (e/s) or examples per hour (e/h), which represent the number of training examples processed per unit of time. Variables Influencing the Training Rate: Model intricacy, Resources available in hardware (GPU/TPU), Quantity of batches, Effectiveness of data preparation algorithm. Equation 12 shows the evaluation of training speed.

where Batch size refers to the quantity of samples handled in a forward or backward pass. Number of Batches refers to the total number of batches in an epoch, and Total Training Time is the time taken to complete one epoch (in seconds).

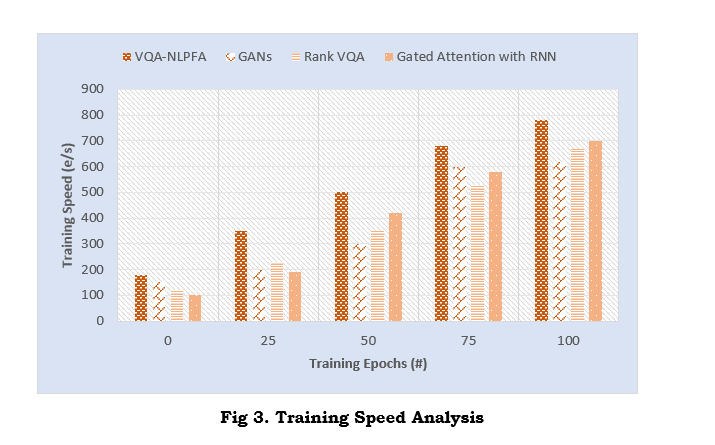

Figure 3 compares the training speed of the VQA-NLPFA model against those of other classic models, namely GANs, Rank VQA, and Gated Attention with RNN. From the figure, one observes that VQA-NLPFA reaches the highest training speed in several stages of training. Such performance is obviously due to the optimization by the Firefly Algorithm, hence speeding up the convergence through faster parameter tunings and feature selections and reducing overfitting. With improved training speed, the model is more efficient for practical purposes where time plays an important role compared to traditional models that require more computational resources and thus take longer in training.

iii) Mean Reciprocal Rank (MRR)

Mean Reciprocal Rank (MRR) is an evaluation metric for information retrieval and question-answering tasks. It considers the average inverse ranks of the right responses throughout a collection of questions or queries. In VQA, a model typically generates a ranked list of potential answers for each question-image pair. MRR helps evaluate how well the model ranks the correct answer among these candidates. It is obtained from the equation 13.

where |Q| is the sum of all inquiries rank_i is the rank of the first right response for the i th question.

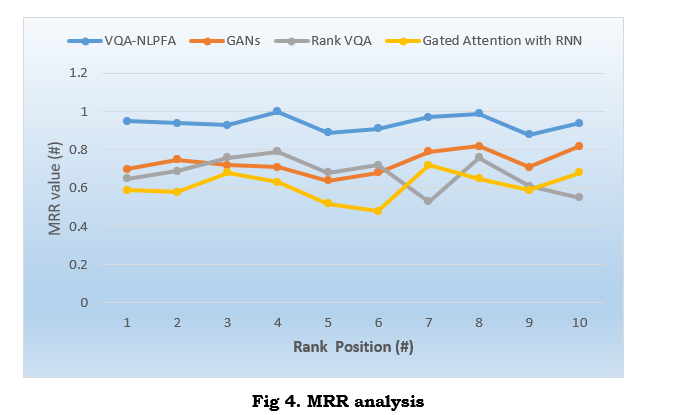

Figure 4 shows the MRR performance comparison for VQA-NLPFA against different models such as GANs, Rank VQA, and Gated Attention with RNN. VQA-NLPFA has obtained higher MRR scores, which proves the ability to rank the correct answer in a better position. This is due to its higher advancement in the attention mechanism and feature fusion of multimodal data for establishing better interlinking between visual and textual features. Further feature selection optimization by the Firefly Algorithm enhances the accuracy of ranking. Therefore, while VQA-NLPFA presents outstanding performance in the case of providing correct answers for complex visual questions, the traditional models show a lack of ability to handle that complexity, which shows up as lower scores in MRR.

iv) Computational Cost

Computational cost in VQA refers to the resources required to process and answer questions about images. This includes time complexity, space complexity, and hardware requirements. It can be calculated using equation 14.

where C_image is the cost of image processing, C_question is the cost of question processing, C_fusion is the cost of multimodal fusion and C_answer is the cost of answer generation/classification.

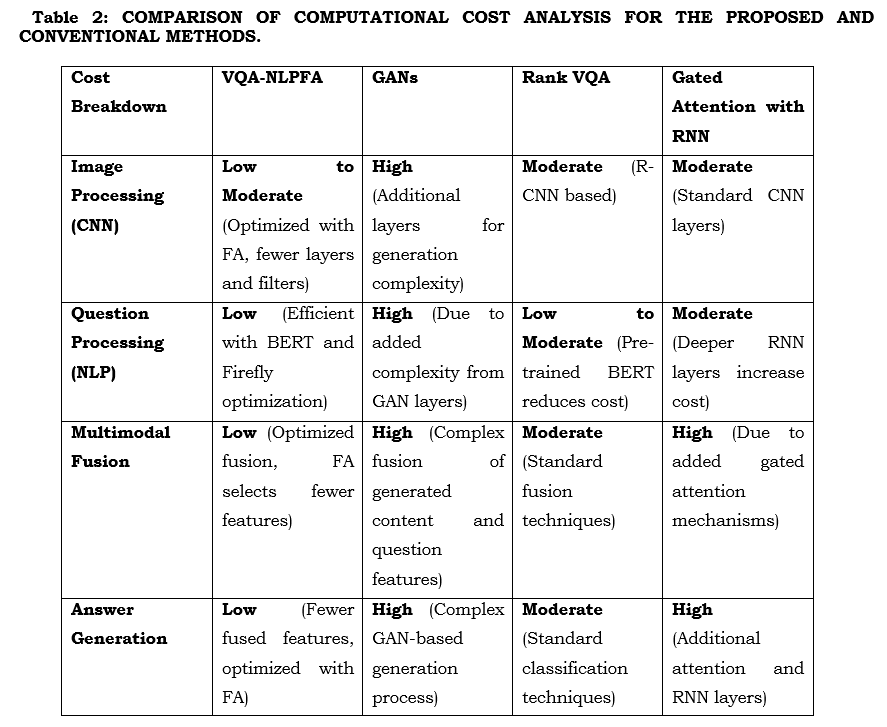

Table 2 compares the computational cost of VQA-NLPFA versus traditional models like GANs, Rank VQA, and Gated Attention with RNN. As a result of optimization by the Firefly Algorithm, VQA-NLPFA has lower computational costs at all steps: processing of the image, processing of questions, fusion of both, and finally producing the answer. This algorithm decreases complexity by choosing less but more representative features and fine-tuning the parameters, increasing efficiency. On the other hand, the GANs and RNN-based models incur a higher cost due to more additional layers and complex fusion processes that call for more resources. This all ensures better scalability for VQA-NLPFA in real-world applications by minimizing time and resource demands.

5. Conclusion

This work proposed the model VQA-NLPFA, incorporating NLP and FA for better performance in VQA tasks. That power ensues from the ability to fuse the multimodal data with optimized attention mechanisms that focus on salient regions of an image and interpret the elaborated query. The FA is essential in optimizing feature selection, enhancing speed, and reducing overfitting. This is indicative of the fact that VQA-NLPFA consistently outperforms the other traditional models like GANs, Rank VQA, and Gated-Attention with RNN, obviously reflected in their accuracy within various metrics such as overall accuracy, top-1 and top-5 accuracy, and finally Mean Reciprocal Rank. The robustness of this model concerning interpretation, even of simple and intricate visual and textual relationships, is efficient. Moreover, since most of the other models are far more computationally expensive than this one, it results in a scalable model for real-world applications. It can offer precision and efficiency in visual question-answering tasks. However, one limitation of the present model is that it relies heavily on computationally intensive attention mechanisms. Future work could also emphasise optimizing the attention mechanism to reduce this burden further, besides exploring the expansion of the model's ability to include more external knowledge in answering more varied open-ended questions.
